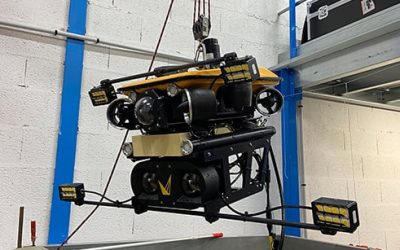

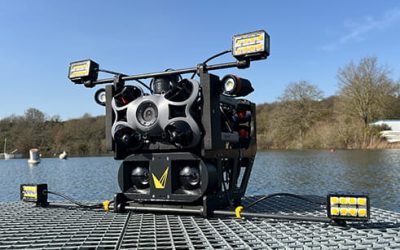

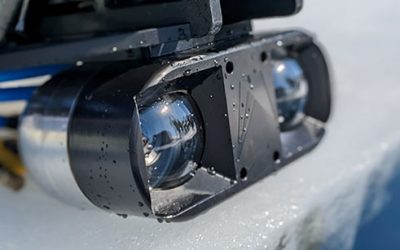

The Voyis underwater photogrammetry Vision systems integrates on ROVs and operates in underwater environments up to 4,000 m deep. Its wide field of view provides a low-latency 4K video stream with high-resolution optics and real-time image enhancement. From sharp still images, it facilitates computer vision and 3D modeling.
Observer Survey Series Micro
Observer Survey Series Pro
Observer Vision Series
Discovery Stereo Inspection Series
Discovery Stereo Perception Series
Insight Nano
Camera
4096 x 3008 - 12MP
2560 x 2160 - 5,5MP
2816 x 2816 (8,1MP), Colour
2816 x 2816 (8MP), Colour
2432 x 1808 (4,4MP), Colour
-
Depth
6000 m
6000 m
300 m
4000 m
300m or 3000m
1000 m
Field of view
56° H x 42° V
64° H x 56° V
130°x130°, fixed focus
Wide, 75°x75°, fixed focus
110°x93°, fixed focus
-
Operating rang
7 m
10 m
0,1 m to 5,0 m
0,1 m to 5,0 m
0,1 m to 5,0 m
0,13 m - 1 m or 0,36 m - 2,5 m
Accuracy
Deep Vision Optics 12mm, f2.0
Deep Vision Optics 12mm, f2.0
-
Linear: 0.3 mm/meter | Local: 0.5mm | Validated on a reference unit by Bureau Veritas North America Inc. under inspection certificate COIN2134USA24
Resolution: 1.5mm to 0.5m | 3mm to 1m | 8mm to 2m span. Accuracy (relative): <3mm at a range of 0.5m | <10mm at a range of 1m. Accuracy (absolute): <1.5% over the operating range
-
Points per Line
-
-
-
-
-
2048 data points at 35 Hz
Insight Micro
Insight Pro
Camera
-
-
Depth
1000 m or 4000 m
4000 m or 6000 m (options)
Field of view
-
-
Operating rang
0,7m - 5,0m (SR) | 1,0m - 7,0m (XR)
1,5 m - 15 m
Accuracy
-
-
Points per Line
2432 data points at 50 Hz Laser with 3Hz Stills Imaging - 100 Hz (Laser Only) with Range Limiting
2048 data points at 90 Hz

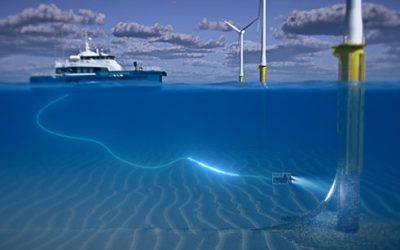

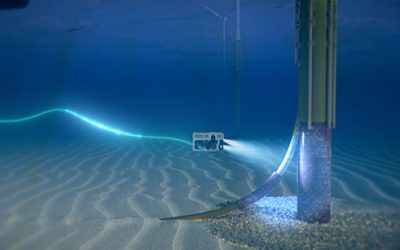

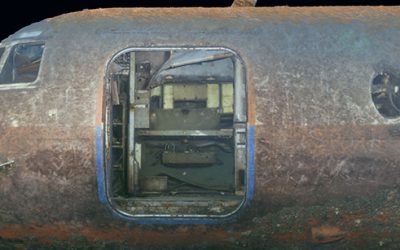

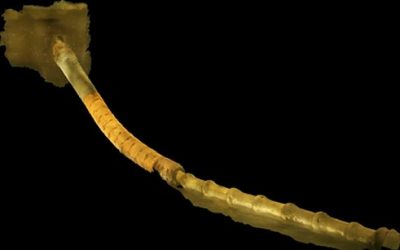

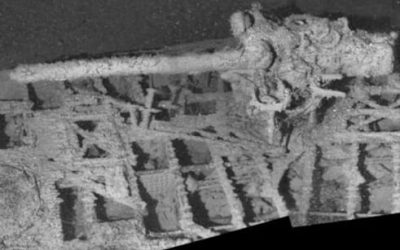

This Voyis vision system requires no calibration, and only a connection to the vehicle. It is particularly suited to professional underwater inspection missions (offshore wind farms, shipwrecks, aircraft wrecks, underwater cables, coral reefs, etc.).

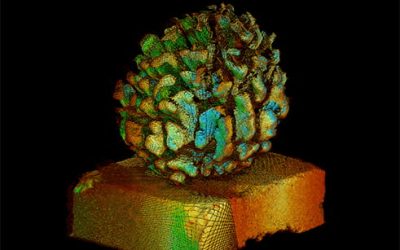

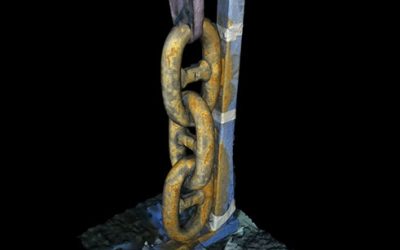

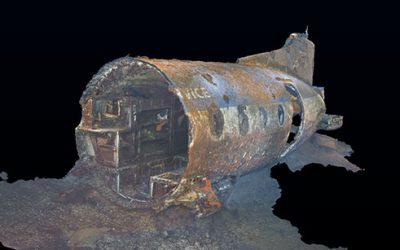

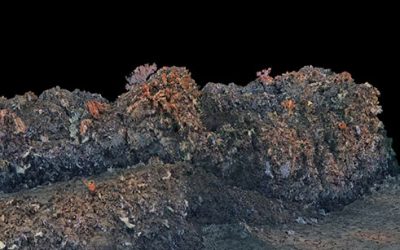

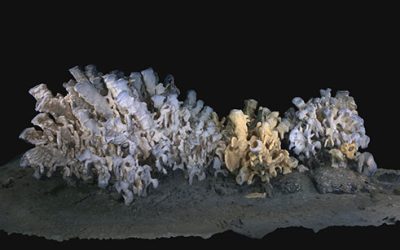

3D reconstruction and coverage mapping are carried out in real time using the VSLAM (Visual Simultaneous Localization and Mapping) software developed by EIVA NaviSuite. The VSLAM solution is an acquisition and visualization software package that generates a 3D model of the environment in real time to optimize obstacle avoidance, detail gathering (such as defect detection), target tracking and dynamic trajectory planning. It also integrates IMU data, vehicle navigation and high dynamic range images.
