The Pandar range of Lidar scanner, from the manufacturer Hesai, is specially designed for mobile applications of 3D mapping / mobile mapping, autonomous navigation of vehicles (buses, cars, tractors, etc.) and logistics and industrial equipment (AGVs, AMRs, pallet trucks, etc.), as well as for stationary installations of anti-collision and intrusion detection systems.

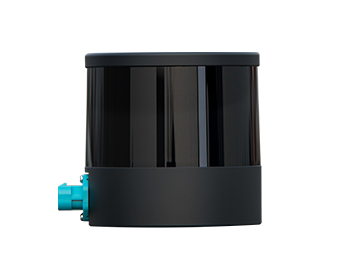

PandarQT

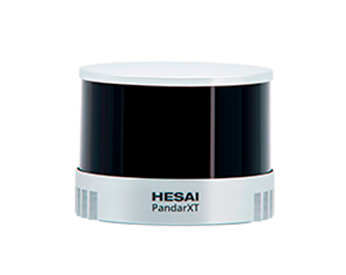

PandarXT-16
PandarXT-32
Pandar40M
Pandar40P
Pandar64
Operating principle
Laser-based Time of Flight measurement
Laser-based Time of Flight measurement
Laser-based Time of Flight measurement
Laser-based Time of Flight measurement
Laser-based Time of Flight measurement
Laser-based Time of Flight measurement
Number of beams
64
16
32
40
40
64
Range
0,1 m to 30 m
0,1 m to 120 m
0,1 m to 120 m
0,3 m to 120 m
0,3 m to 200 m
0,3 m to 200 m
Vertical aperture
104,2°
31°
31°
40°
40°
40°
Vertical resolution
1,5°
2°
1°
0,33°
0,33°
0,167°
Horizontal resolution
0,6°
0,18°
0,18°
0,2°
0,2°
0,2°
Accuracy
+/-2 cm
+/-2 cm
+/-2 cm
+/-2 cm
+/-2 cm
+/-2 cm
Return mode
Double-Echo
Double-Echo
Double-Echo
Double-Echo
Double-Echo
Double-Echo

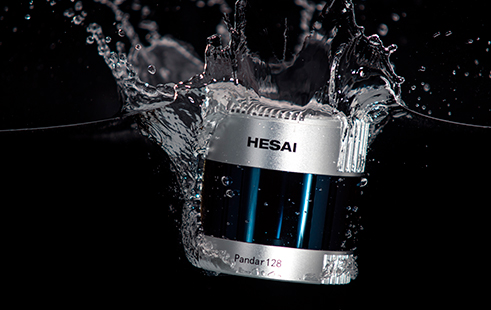

Pandar128
Operating principle
Laser-based Time of Flight measurement
Number of beams
128
Range
0,3 m to 200 m
Vertical aperture
40°
Vertical resolution
0,125°
Horizontal resolution
0,1°
Accuracy
+/-2 cm
Return mode
Double-Echo

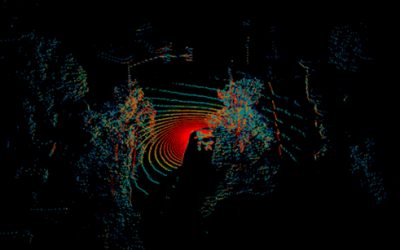

Lidar scanner allow the reconstruction of a 3D point cloud, and are ideal for dynamic measurements. Applications: guidance and trajectory planning of autonomous vehicles, mobile mapping, study of the environment and urban areas, 3D mapping, etc.
Performance diversity in terms of range (from a few meters to several kilometers) and point density (from a few tens of thousands of points to several millions in one second) of these Lidar sensors allow these technologies to be used for many types of projects.
The list of applications is very long:
Read the full article Focus on… Lidar to understand Lidar technology: definition, explanation of operation, difference with radar or camera, examples of applications, etc.
Our philosophy is to support our clients at all key stages of their projects.
A wide choice of rental sensors and acquisition systems, systems integration services, tailor-made training and technical support. Our rental catalog also includes complete systems, combining sensors of different technologies and from the main world-leading manufacturers.
Choosing Cadden as your project partner allows you to benefit from relevant technical advice, before, during, and after delivery. We accompany you during installation and provide technical support, even after the end of the equipment warranty.
Our trainers have advanced knowledge of all the solutions provided. Thanks to a close partnership with all of our suppliers, our training team will provide you with tailor-made solutions, training adapted to your applications.
