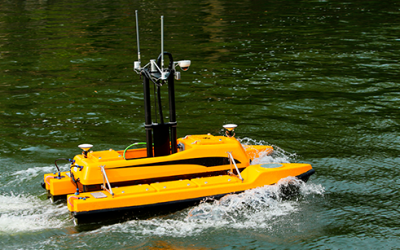

The OceanAlpha hydrographic USV range is rugged, powerful, stable and specifically designed to meet all the requirements for hydrographic and bathymetric applications. These surface drones operate in all types of environments and efficiently improve productivity while ensuring safe working conditions.
SL20
SL40
ME120
M40
Hull material
Carbon fiber
Carbon fiber
Carbon fiber
Carbon fiber
Dimensions
105 x 55 x 38 cm
160 x 70 x 40 cm
250 x 140 x 70 cm
330 x 190 x 180 cm
Weight
17 kg
32 kg
150 kg
500 kg
Draft
18 cm
15 cm
40 cm
40 cm
Motor
Hydrojet
Hydrojet
Electric propeller
Electric, thermal, hybrid propeller
Speed
5 m/s max.
5 m/s max.
5 m/s max.
3.5 m/s max.
Endurance (speed 1.5m/s)
6 hours minimum
6 hours minimum
8 hours minimum
11 hours minimum
Remote control range
1 km
1 km
1 km
1 km
Wireless control station range
2 km
2 km
2 km
2 km
OceanAlpha hydrographic USV can be combined with a wide variety of sensors (single and multibeam echosounders, Lidars, sonars, etc.), for high-performance data acquisition in all environments.
QINSY, QIMERA or HYPACK software suites can be used as a complement, to synchronize the data from all the sensors integrated in the acquisition system, and allowing for the application and processing thereof.
Our philosophy is to support our clients at all key stages of their projects.
A wide choice of rental sensors and acquisition systems, systems integration services, tailor-made training and technical support. Our rental catalog also includes complete systems, combining sensors of different technologies and from the main world-leading manufacturers.
Choosing Cadden as your project partner allows you to benefit from relevant technical advice, before, during, and after delivery. We accompany you during installation and provide technical support, even after the end of the equipment warranty.
Our trainers have advanced knowledge of all the solutions provided. Thanks to a close partnership with all of our suppliers, our training team will provide you with tailor-made solutions, training adapted to your applications.
